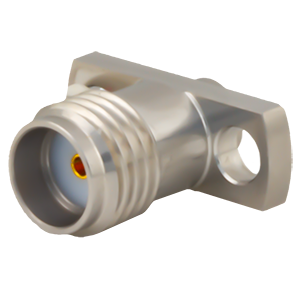

RF-SMA-FMT-ST-F-26-A1-040
0~26.5 GHz, 50 O Impedence, VSWR 1.15:1 max, Straight, Flange Panel Mount, PCB Pin, Stainless Steel, Standard Polarity, RF SMA Receptacle Connector
Specifications
| Type | Description | |
|---|---|---|
| Connector Type | Receptacle |
|
| RF Connector Type | SMA |
|
| Frequency Range (GHz) | 0~26.5 |
|
| Nominal Impedence (Ω) | 50 |
|
| Voltage Standing Wave Ratio (max) | 1.15 |
|
| Insulation Resistance (Ω min) | 5000 |
|
| Working Voltage (V rms) | 335 |
|
| Dielectric Withstanding Voltage (V rms) | 1000 |
|
| Mounting Style | Panel Mount |
|
| Contact Termination | PCB Pin |
|
| Polarity | Standard Polarity |
|
| Orientation | Vertical |
|
| Body Material | Steel |
|
| Industry Standard(s) | MIL-C-39012, CECC 22110/111 |
|
| Length (mm) | 12.2 |
|
| Width (mm) | 12.7 |
|
| Height Above Board (mm) | 4.8 |
|
| IP Rating | No IP Rating |
|
