Home / Interconnect / Connectors / Terminal Blocks / TBL001-500 Series

TBL001-500 Series

TBL001-500 Series

TBL001-500 Series - Blue

TBL001-500 Series - Green

TBL001-500 Series - Orange

TBL001-500 Series - Yellow

TBL001-500 Series - Black

TBL001-500 Series

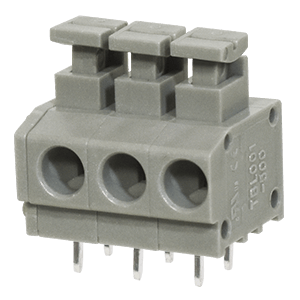

1~24 Poles, Screwless, Horizontal, 5.0 Pitch, 20~18 (AWG), Terminal Block Connector

Datasheet

Features
Specifications
Technical Docs
Compliance
Other Resources

Features

Interlocking

UL and CE safety approvals

Options

1~24 pole counts

Multiple color options

Specifications

Type	Description	Select
Orientation	Horizontal
Pitch (mm)	5
IEC Current Rating (A)	15
UL Current Rating (A)	5
IEC Voltage Rating (Vdc)	250
UL Voltage Rating (Vdc)	300
Wire Gauge (AWG)	20~18
Dimensions WxH (mm)	12.6 x 13.15
Dimensions WxH (in)	0.496 x 0.518
Series	TBL001-500

Technical Docs

Datasheet 3D Model PCB Footprint

Compliance

Product Notifications RoHS & REACH CE Declaration of Conformance

Other Resources

Customize Your Part

SKU Number

Number of Positions

Color

Push Button Color

Configured Part Number
