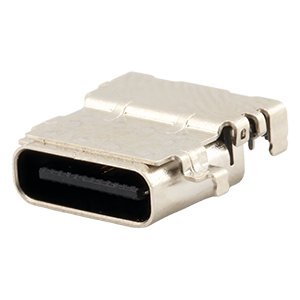

UJ40-C-H-G-MSMT-2B-P24-TR
Type C, USB4 Gen 3x2, 40 Gbps, 20 Vdc, 5 A, Horizontal, Mid Surface Mount, Gold Plated 3 µin, USB Receptacle
Specifications
| Type | Description | |
|---|---|---|
| Connector Type | Receptacle |
|
| Mounting Style | Mid Surface Mount |
|
| USB Type | Type C |
|
| Orientation | Horizontal |
|
| USB Standard | USB4 Gen 3x2 |
|
| Data Transfer Speed | 40 Gbps |
|
| Voltage Rating | 20 |
|
| Input Type | Vdc |
|
| Current Rating (A) | 5 |
|
| Contact Plating Thickness | 3 µin |
|
| Color Insulator | Black |
|
| IP Rating | No IP Rating |
|
| Dimensions LxWxH (mm) | 7.55 x 3.88 x 9.4 |
|
