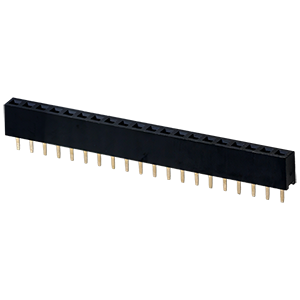

SSK09-FPH-200-A20
2.0 mm Female Header, 1 x 20 Pin, Straight, PA6T, Gold Flash, Rectangular Connector
Specifications
| Type | Description | |
|---|---|---|
| Connector Type | Female Pin Header |
|
| Orientation | Straight |
|
| Number of Pins | 20 |
|
| Number of Rows | 1 |
|
| Voltage Rating (Vdc) | 220 |
|
| Current Rating (A) | 2 |
|
| Pitch (mm) | 2 |
|
| Contact Length - Mating (mm) | N/A |
|
| Contact Length - Post (mm) | 2.4 |
|
| Insulation Height (mm) | 4.3 |
|
| Mounting Style | Through Hole |
|
| Fastening Type | Push-Pull |
|
| Contact Finish | Gold Flash |
|
| Operating Temp Range (°C) | -40 ~ 105 |
|
| IP Rating | No IP Rating |
|
| Series | SSK09 |
|
