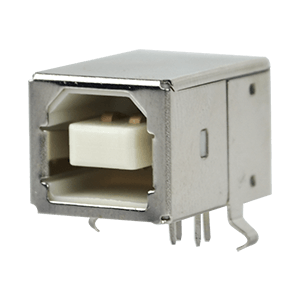

UJ2-BH-2-TH
Type B, USB 2.0, 480 Mbps, 30 Vac, 1 A, Horizontal, Through Hole, 6 µin, USB Receptacle
Specifications
| Type | Description | |
|---|---|---|
| Connector Type | Receptacle |
|
| Mounting Style | Through Hole |
|
| USB Type | Type B |
|
| Orientation | Horizontal |
|
| USB Standard | USB 2.0 |
|
| Data Transfer Speed | 480 Mbps |
|
| Voltage Rating | 30 |
|
| Input Type | Vac |
|
| Current Rating (A) | 1 |
|
| Contact Plating Thickness | 6 µin (min) |
|
| Color Insulator | Black |
|
| IP Rating | No IP Rating |
|
| Series | UJ2-BH-TH |
|
| Dimensions LxWxH (mm) | 16.5 x 12.2 x 10.8 |
|
