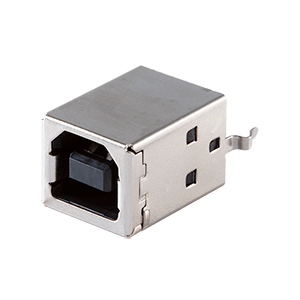

UJ2-B-HR-G-V
Type B, USB 2.0, 480 Mbps, 5 Vdc, 1.5 A, Vertical, Through Hole, Gold Flash, USB Receptacle
Specifications
| Type | Description | |
|---|---|---|
| Connector Type | Receptacle |
|
| Mounting Style | Through Hole |
|
| USB Type | Type B |
|
| Orientation | Vertical |
|
| USB Standard | USB 2.0 |
|
| Data Transfer Speed | 480 Mbps |
|
| Voltage Rating | 5 |
|
| Input Type | Vdc |
|
| Current Rating (A) | 1.5 |
|
| Contact Plating Thickness | Gold Flash |
|
| Color Insulator | Black |
|
| IP Rating | No IP Rating |
|
| Series | UJ2 |
|
| Dimensions LxWxH (mm) | 11 x 14.8 x 16.2 |
|
