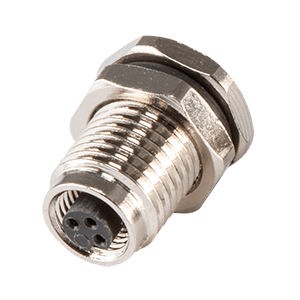

CDM506-03A-FT-F775-67
3 Pins, PCB Panel Mount, Pc Pins, Front Fastened M5 x 0.75, A-Coding, Screw Copper Alloy, IP67, M5 Female Circular Connector Jack
Specifications
| Type | Description | |
|---|---|---|
| Connector Size | M5 |
|
| Connector Type | Jack |
|
| Connector Style | Female |
|
| Mounting Style | Panel Mount |
|
| Coding | A |
|
| Number of Positions | 3 |
|
| Termination | Pc Pins |
|
| Voltage Rating (Vac) | 60 |
|
| Current Rating (A) | 1 |
|
| IP Rating | IP67 |
|
| Shielding | No |
|
| Pin Size (mm) | 0.5 |
|
| Mounting Thread Size | M5 x 0.75 |
|
| Fastening Type | Threaded Front |
|
| Color | Silver |
|
| Contact Finish | Gold Plated |
|
| Shell Finish | Brass with Nickel Plating |
|
| Shell Size (mm) | 5 |
|
| Series | CDM506 |
|
