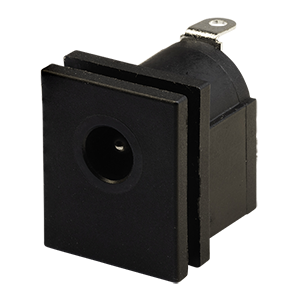

PJ-043H

PJ-043H
PJ-043H Alternate View
PJ-043H Alternate View

PJ-043H

1.65 x 4.4 mm, 5.0 A, Vertical, Through Hole, Dc Power Jack Connector

Datasheet

Specifications

Type Description
Select
Connector Type Jack
Inner Diameter (mm) 1.65
Outer Diameter (mm) 4.4
Insertion Depth/Length (mm) 9
Mounting Style Through Hole
Orientation Vertical
Voltage Rating (Vdc) 24
Current Rating (A) 5
Number of Conductors 2
Internal Switch(es) 1
Shielding No
Dimensions LxWxH (mm) 15.7 x 13 x 13.4
