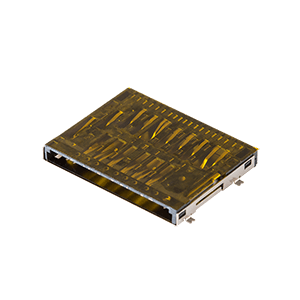

SD4-5-B
SD 4.0 Card Connectors, 19 Contacts, Connector, Push In, Pull Out, Surface Mount, 3 mm Height Above Board, Gold Flash
Specifications
| Type | Description | |
|---|---|---|
| Connector Type | Connector |
|
| Compatible Card | SD Card |
|
| Mounting Style | Surface Mount |
|
| Removal Method | Push In, Pull Out |
|
| Number of Contacts | 19 |
|
| Contact Finish | Gold Plated |
|
| Height Above Board (mm) | 3 |
|
| Card Detect Switch | Yes (Normally Open) |
|
| Contact Finish Thickness | Gold Flash |
|
| Length (mm) | 20 |
|
| Width (mm) | 28.45 |
|
