CDM1211-04D-MT-F9-67

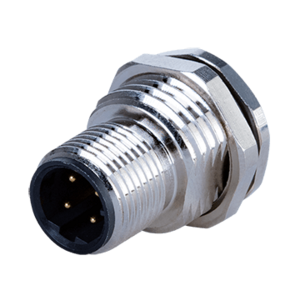

4 Pins, Panel Mount, Front Fastened PG9, D-Coding, Screw Copper Alloy, M12 Male Circular Connector Jack

Datasheet

Specifications

Type Description
Select
Connector Type Jack
Connector Size M12
Connector Style Male
Termination Pc Pins
Voltage Rating (Vac) 250
Current Rating (A) 4
Coding D
Number of Positions 4
Pin Size (mm) 1
IP Rating IP67
Mounting Thread Size M16 x 1.5
Color Silver
Contact Finish Gold Plated
Fastening Type Threaded Front
Mounting Style Panel Mount
Operating Temp Range (°C) -25 ~ 80
Shell Finish Brass with Nickel Plating
Shell Size (mm) 12
Shielding No
Series CDM1211
