SJ1-3515-SMT-TR-BE
SJ1-3515-SMT-TR-BE
SJ1-3515-SMT-TR-BE Alternate View
SJ1-3515-SMT-TR-BE Alternate View

SJ1-3515-SMT-TR-BE

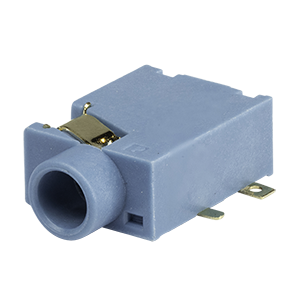

3.5 mm, Stereo, Right Angle, Surface Mount (SMT), 3 Conductors, 2 Internal Switches, Audio Jack Connector

Datasheet

Specifications

Type Description
Select
Audio Standard (mm) 3.5
Connector Type Jack
Mounting Style Surface Mount
Shielding No
Number of Conductors 3
Orientation Horizontal
Series SJ1-351X-SMT
Internal Switch(es) 2
Number of Ports 1
Color Blue
Voltage Rating (Vdc) 12
Current Rating (A) 1
