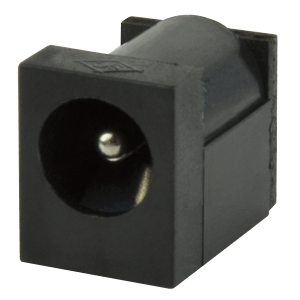

PJ-006A-SMT-TR
2.0 x 6.3 mm, 2.5 A, Vertical, Surface Mount (SMT), Dc Power Jack Connector
Specifications
| Type | Description | |
|---|---|---|
| Connector Type | Jack |
|
| Inner Diameter (mm) | 2 |
|
| Outer Diameter (mm) | 6.3 |
|
| Mounting Style | Surface Mount |
|
| Orientation | Vertical |
|
| Voltage Rating (Vdc) | 18 |
|
| Current Rating (A) | 4 |
|
| Number of Conductors | 2 |
|
| Internal Switch(es) | 1 |
|
| Shielding | No |
|
| Insertion Depth/Length (mm) | 8.95 |
|
| Dimensions LxWxH (mm) | 14.1 x 9 x 10.9 |
|
