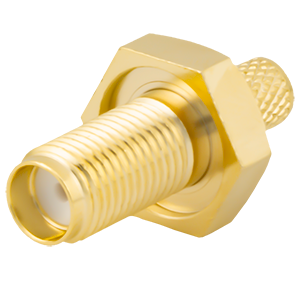

RF-SMA-CC-ST-F-6-030-67
0~6 GHz, 50 O Impedence, VSWR 1.5 max, Straight, Cable Crimp Assembly, Brass, Standard Polarity, IP67, RF SMA Receptacle Connector
Specifications
| Type | Description | |
|---|---|---|
| Connector Type | Receptacle |
|
| RF Connector Type | SMA |
|
| Frequency Range (GHz) | 0~6 |
|
| Nominal Impedence (Ω) | 50 |
|
| Voltage Standing Wave Ratio (max) | 1.5 |
|
| Insulation Resistance (Ω min) | 5000 |
|
| Working Voltage (V rms) | 335 |
|
| Dielectric Withstanding Voltage (V rms) | 1000 |
|
| Mounting Style | Cable Mount |
|
| Contact Termination | Cable Crimp |
|
| Polarity | Standard Polarity |
|
| Orientation | Vertical |
|
| Body Material | Brass |
|
| Industry Standard(s) | MIL-C-39012, CECC 22110/111 |
|
| Length (mm) | 21.8 |
|
| Width (mm) | 11 |
|
| Height Above Board (mm) | 11 |
|
| IP Rating | IP67 |
|
