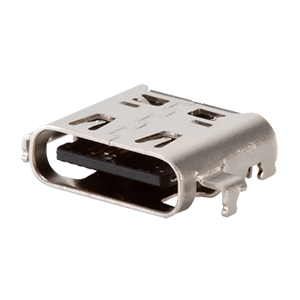

UJ40-22-C-H-G-MSMT-P24-TR
Type C, USB 4.0 Gen 2x2, 20 Gbps, 20 Vdc, 5 A, Horizontal, Mid Mount SMT, SMT Contacts, Gold Flash, 24 Pins, USB Receptacle
Specifications
| Type | Description | |
|---|---|---|
| Connector Type | Receptacle |
|
| Mounting Style | Mid Mount SMT |
|
| Contact Pin Type | Surface Mount |
|
| USB Type | Type C |
|
| Orientation | Horizontal |
|
| USB Standard | USB 4.0 Gen 2x2 |
|
| Data Transfer Speed | 20 Gbps |
|
| Voltage Rating | 20 |
|
| Input Type | Vdc |
|
| Current Rating (A) | 5 |
|
| Contact Plating Thickness | Gold Flash |
|
| Color Insulator | Black |
|
| Dimensions LxWxH (mm) | 8 x 11.8 x 2.08 |
|
| IP Rating | No IP Rating |
|
