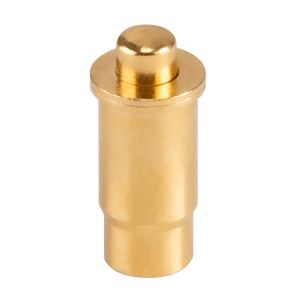

CPG-90-SMT-B
150 gf Mid Compression Operating Force, 12 Vdc, 25 A, Spring Loaded, Gold Plated, Through Hole, Pogo Pin
The CPG-90-SMT-B is a high current pogo pin carrying a 25 A rated current and 12 Vdc rated voltage. This spring loaded pogo pin features gold plating, a mating cycle rating of 10,000 cycles, and a mid compression operating force of 150 gf.
Specifications
| Type | Description | |
|---|---|---|
| Contact Type | Sleeve and Plunger |
|
| Mounting Style | Surface Mount |
|
| Number of Pins | 1 |
|
| Recommended Working Height (mm) | 7.2 |
|
| Minimum Working Height (mm) | 7 |
|
| Plunger Width (mm) | 2 |
|
| Overall Height (mm) | 8.5 |
|
| Mid Stroke (mm) | 1.3 |
|
| Barrel Contact Finish Thickness (µm) | 0.05 |
|
| Barrel Contact Finish Thickness (µin) | 1.96 |
|
| Plunger Contact Finish Thickness (µm) | 0.25 |
|
| Plunger Contact Finish Thickness (µin) | 9.84 |
|
| Barrel Diameter (mm) | 3.3 |
|
| Voltage Rating (Vdc) | 12 |
|
| Current Rating (A) | 25 |
|
| Mid Compression Operating Force (gf) | 150 |
|
| Mating Cycles | 10000 |
|
| Spring | Stainless steel (SUS 304) |
|
| Pad Shape | Round |
|
