CPG-44-TH-TR

CPG-44-TH-TR

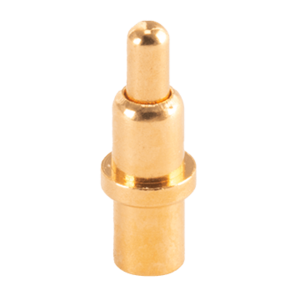

25 gf Initial Operating Force, 30 gf Mid Compression Operating Force, Spring Loaded, Gold Plated, Through Hole, Pogo Pin

Datasheet

Specifications

Type Description
Select
Mounting Style Through Hole
Recommended Working Height (mm) 2.75
Minimum Working Height (mm) 2.4
Pad Layout Dimension (mm) 2.2
Plunger Size (mm) 2
Overall height (mm) 3.8
Full Stroke Capability (mm) 1.4
Mid Stroke (mm) 1.4
Barrel Contact Finish Thickness (µm) 0.4
Barrel Contact Finish Thickness (µin) 15.74
Plunger Contact Finish Thickness (µm) 0.75
Plunger Contact Finish Thickness (µin) 29.52
Barrel Diameter (mm) 1.5
Flange Diameter (mm) 2
Initial Operating Force (gf) 25
Mid Compression Operating Force (gf) 30
Contact Finish Gold Plated
Contact Material Brass Alloy
Spring Stainless steel (SUS 304)
