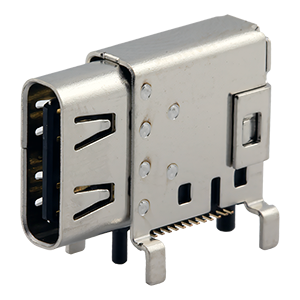

UJ32-22-C-RA-G-SMT-3B-P24-TR
Type C, USB 3.2 Gen 2x2, 20 Gbps, 20 Vdc, 5 A, Right Angled, Surface Mount Through Hole, Gold Plated 3 µin, USB Receptacle
Specifications
| Type | Description | |
|---|---|---|
| Connector Type | Receptacle |
|
| Mounting Style | Surface Mount Through Hole |
|
| USB Type | Type C |
|
| Orientation | Right Angled |
|
| USB Standard | USB 3.2 Gen 2x2 |
|
| Data Transfer Speed | 20 Gbps |
|
| Voltage Rating | 20 |
|
| Input Type | Vdc |
|
| Current Rating (A) | 5 |
|
| Contact Plating Thickness | 3 µin |
|
| Color Insulator | Black |
|
| IP Rating | No IP Rating |
|
| Dimensions LxWxH (mm) | 13.1 x 6 x 9.34 |
|
