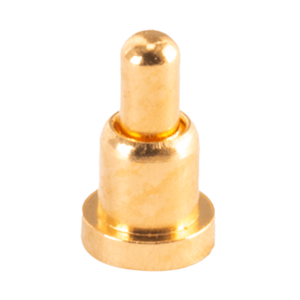

CPG-21-SMT-B
90 gf Initial Operating Force, 110 gf Mid Compression Operating Force, Spring Loaded, Gold Plated, Surface Mount, Pogo Pin
Specifications
Type | Description | |
---|---|---|
Mounting Style | Surface Mount |
|
Recommended Working Height (mm) | 2.8 |
|
Minimum Working Height (mm) | 2.6 |
|
Pad Layout Dimension (mm) | 2 |
|
Plunger Size (mm) | 2 |
|
Overall height (mm) | 3.5 |
|
Full Stroke Capability (mm) | 0.9 |
|
Mid Stroke (mm) | 0.7 |
|
Barrel Contact Finish Thickness (µm) | 0.1 |
|
Barrel Contact Finish Thickness (µin) | 3.98 |
|
Plunger Contact Finish Thickness (µm) | 0.25 |
|
Plunger Contact Finish Thickness (µin) | 9.84 |
|
Barrel Diameter (mm) | 1.5 |
|
Flange Diameter (mm) | 2 |
|
Initial Operating Force (gf) | 90 |
|
Mid Compression Operating Force (gf) | 110 |
|
Contact Finish | Gold Plated |
|
Contact Material | Brass Alloy |
|
Spring | Stainless steel (SUS 304) |
|
