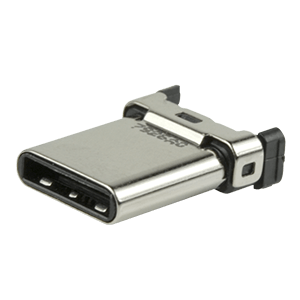

UP31-CV-G-CM
Type C, USB 3.2 Gen 2x1, 10 Gbps, 20 Vdc, 5 A, Horizontal, Board Edge Mount, Surface Mount, Gold Plated 2 µin, 24 Pins, USB Plug Connector
Specifications
| Type | Description | |
|---|---|---|
| Connector Type | Plug |
|
| Mounting Style | Board Edge |
|
| Contact Pin Type | Surface Mount |
|
| USB Type | Type C |
|
| Orientation | Horizontal |
|
| USB Standard | USB 3.2 Gen 2x1 |
|
| Data Transfer Speed | 10 Gbps |
|
| Voltage Rating | 20 |
|
| Input Type | Vdc |
|
| Current Rating (A) | 5 |
|
| Contact Plating Thickness | 2 µin (min) |
|
| Color Insulator | Black |
|
| Series | UP31 |
|
