CPG-25-SMT-TR

CPG-25-SMT-TR

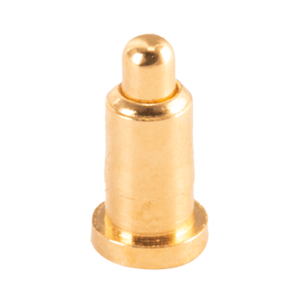

100 gf Initial Operating Force, 110 gf Mid Compression Operating Force, Spring Loaded, Gold Plated, Surface Mount, Pogo Pin

Datasheet

Specifications

Type Description
Select
Mounting Style Surface Mount
Recommended Working Height (mm) 3.3
Minimum Working Height (mm) 3.5
Pad Layout Dimension (mm) 2.2
Plunger Size (mm) 2
Overall height (mm) 4
Full Stroke Capability (mm) 0.9
Mid Stroke (mm) 0.7
Barrel Contact Finish Thickness (µm) 0.1
Barrel Contact Finish Thickness (µin) 3.98
Plunger Contact Finish Thickness (µm) 0.25
Plunger Contact Finish Thickness (µin) 9.84
Barrel Diameter (mm) 1.5
Flange Diameter (mm) 2
Initial Operating Force (gf) 100
Mid Compression Operating Force (gf) 110
Contact Finish Gold Plated
Contact Material Brass Alloy
Spring Stainless steel (SUS 304)
