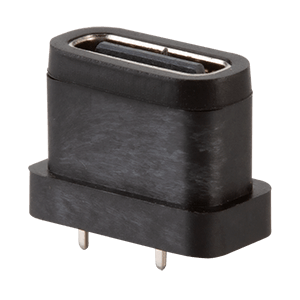

UJ32-1-C-V-G-SMT-P24-TR-67
Type C, USB 3.2 Gex 2x1, 10 Gbps, 20 Vdc, 3 A, Vertical, Surface Mount, SMT Contacts, Gold Flash, 24 Pins, 8.8mm, IP67, USB Receptacle
Specifications
| Type | Description | |
|---|---|---|
| Connector Type | Receptacle |
|
| Mounting Style | Surface Mount, Anchor Pins |
|
| Contact Pin Type | Surface Mount |
|
| USB Type | Type C |
|
| Orientation | Vertical |
|
| USB Standard | USB 3.2 Gen 2x1 |
|
| Data Transfer Speed | 10 Gbps |
|
| Voltage Rating | 20 |
|
| Input Type | Vdc |
|
| Current Rating (A) | 3 |
|
| Contact Plating Thickness | Gold Flash |
|
| Color Insulator | Black |
|
| Dimensions LxWxH (mm) | 6.1 x 11.85 x 8.8 |
|
| IP Rating | IP67 |
|
