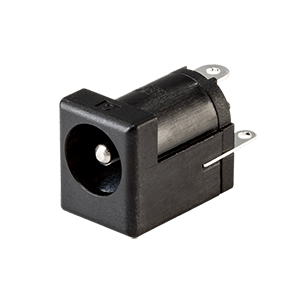

PJ-044AH

PJ-044AH
PJ-044AH Alternate View

PJ-044AH

2.0 x 6.5 mm, 5.0 A, Vertical, Through Hole, Dc Power Jack Connector

Datasheet

Specifications

Type Description
Select
Connector Type Jack
Inner Diameter (mm) 2
Outer Diameter (mm) 6.5
Insertion Depth/Length (mm) 9
Mounting Style Through Hole
Orientation Vertical
Voltage Rating (Vdc) 24
Current Rating (A) 5
Number of Conductors 2
Internal Switch(es) 1
Shielding No
Dimensions LxWxH (mm) 11 x 9 x 14.2
