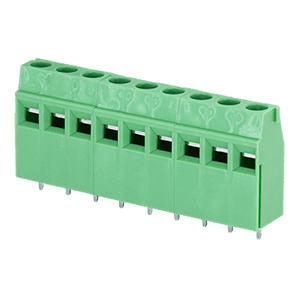

TB0012-508-09GR
9 Poles, Screw Type, Horizontal, 5.08 Pitch, 26~14 (AWG), Terminal Block Connector
Specifications
| Type | Description | |
|---|---|---|
| Connector Type | Receptacle |
|
| IEC Current Rating (A) | 15 |
|
| IEC Voltage Rating (Vdc) | 250 |
|
| UL Current Rating (A) | 12 |
|
| UL Voltage Rating (Vdc) | 300 |
|
| Screw Type | Slot |
|
| Orientation | Horizontal |
|
| Wire Gauge (AWG) | 26~14 |
|
| Pitch (mm) | 5.08 |
|
| Dimensions WxH (mm) | 8.65 x 19.2 |
|
| Dimensions WxH (in) | 0.34 x 0.755 |
|
| Series | TB0012-508 |
|
