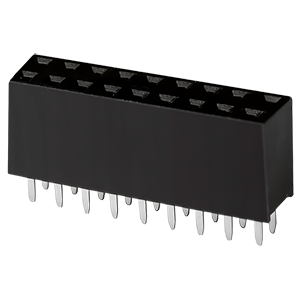

SSK04-FPH-254-B9
2.54 mm Female Header, 2 x 9 Pin, Straight ,PA6T, Gold Flash, Rectangular Connector
Specifications
| Type | Description | |
|---|---|---|
| Connector Type | Female Pin Header |
|
| Orientation | Straight |
|
| Pitch (mm) | 2.54 |
|
| Number of Pins | 18 |
|
| Number of Rows | 2 |
|
| Row Spacing (mm) | 2.54 |
|
| Contact Length - Post (mm) | 3 |
|
| Insulation Height (mm) | 8.5 |
|
| Mounting Style | Through Hole |
|
| Fastening Type | Push-Pull |
|
| Voltage Rating (Vdc) | 250 |
|
| Contact Finish | Gold Flash |
|
| Current Rating (A) | 3 |
|
| Operating Temp Range (°C) | -40 ~ 105 |
|
| IP Rating | No IP Rating |
|
| Series | SSK04 |
|
