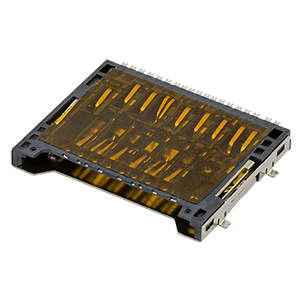

SD4-7-B
SD 4.0 Card Connector, 18 Contacts, Push In / Pull Out, Surface Mount, 1.45 mm Height Above Board, 1 µin Gold Plated
Specifications
| Type | Description | |
|---|---|---|
| Connector Type | Connector |
|
| Compatible Card | SD Card |
|
| Mounting Style | Surface Mount |
|
| Removal Method | Push In / Pull Out |
|
| Number of Contacts | 18 |
|
| Height Above Board (mm) | 1.45 |
|
| Card Detect Switch | Yes (Normally Open) |
|
| Contact Finish | Gold Plated |
|
| Contact Finish Thickness | 1 µin |
|
| Length (mm) | 21.2 |
|
| Width (mm) | 28.45 |
|
