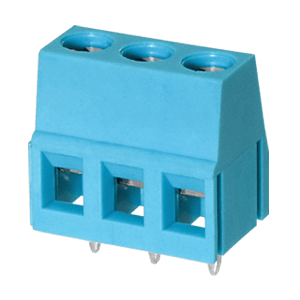

TB004-508 Series
2~24 Poles, Screw Type, Horizontal, 5.08 Pitch, 24~12 (AWG), Terminal Block Connector
Features
| Interlocking |
| UL and CE safety approvals |
Options
| 2~24 pole counts |
| Multiple color options |
Specifications
| Type | Description | |
|---|---|---|
| Number of Positions | 2~24 |
|
| Orientation | Horizontal |
|
| Pitch (mm) | 5.08 |
|
| IEC Current Rating (A) | 18 |
|
| UL Current Rating (A) | 16 |
|
| IEC Voltage Rating (Vdc) | 250 |
|
| UL Voltage Rating (Vdc) | 300 |
|
| Operating Temp Range (°C) | -40 ~ 105 |
|
| Wire Gauge (AWG) | 24~12 |
|
| Dimensions WxH (mm) | 10.2 x 14.1 |
|
| Dimensions WxH (in) | 0.401 x 0.555 |
|
| Series | TB004-508 |
|
