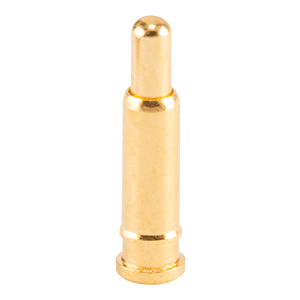

CPG-58-SMT-B
80 gf Mid Compression Operating Force, Spring Loaded, 12 Vdc, 2 A, Gold Plated, Surface Mount, Pogo Pin
Specifications
| Type | Description | |
|---|---|---|
| Contact Type | Sleeve and Plunger |
|
| Mounting Style | Surface Mount |
|
| Pad Layout Dimension (mm) | 2 |
|
| Number of Pins | 1 |
|
| Recommended Working Height (mm) | 5.6 |
|
| Maximum Working Height (mm) | 6.3 |
|
| Plunger Width (mm) | 1.06 |
|
| Minimum Working Height (mm) | 5.3 |
|
| Overall Height (mm) | 7 |
|
| Full Stroke Capability (mm) | 1.7 |
|
| Mid Stroke (mm) | 1.4 |
|
| Barrel Contact Finish Thickness (µin) | 10 |
|
| Plunger Contact Finish Thickness (µin) | 10 |
|
| Barrel Diameter (mm) | 1.5 |
|
| Flange Diameter (mm) | 1.82 |
|
| Voltage Rating (Vdc) | 12 |
|
| Mid Compression Operating Force (gf) | 80 |
|
| Mating Cycles | 10000 |
|
| Contact Finish | Gold Plated |
|
| Contact Material | Copper Alloy |
|
| Current Rating (A) | 2 |
|
| Spring | Stainless steel (SUS 304) |
|
| Pad Shape | Round |
|
