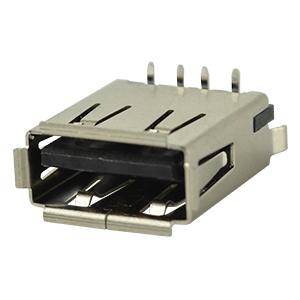

UJ2-AV-4-SMT-TR
Type A, USB 2.0, 480 Mbps, 30 Vac, 1 A, Vertical, Surface Mount Mounting Style, Surface Mount Contact Pin Type, 30 µin Plating Thickness, Black Insulator, USB Receptacle
Specifications
| Type | Description | |
|---|---|---|
| Connector Type | Receptacle |
|
| Mounting Style | Surface Mount |
|
| Contact Pin Type | Surface Mount |
|
| USB Type | Type A |
|
| Orientation | Vertical |
|
| USB Standard | USB 2.0 |
|
| Data Transfer Speed | 480 Mbps |
|
| Voltage Rating | 30 |
|
| Input Type | Vac |
|
| Current Rating (A) | 1 |
|
| Contact Plating Thickness | 30 µin (min) |
|
| Pick & Place Option | No |
|
| Color Insulator | Black |
|
| Series | UJ2-AV-SMT-TR | |
|
