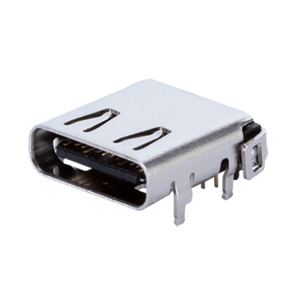

UJ32-C-H-G-SMT-7-P24-TR
Type C, USB 3.2 Gen 1, 5 Gbps, 30 Vdc, 5 A, Horizontal, Hybrid Mount, Gold Plated 3 µin, USB Receptacle
Specifications
| Type | Description | |
|---|---|---|
| Connector Type | Receptacle |
|
| Mounting Style | Hybrid Mount |
|
| USB Type | Type C |
|
| Orientation | Horizontal |
|
| USB Standard | USB 3.2 Gen 1 |
|
| Data Transfer Speed | 5 Gbps |
|
| Voltage Rating | 30 |
|
| Input Type | Vdc |
|
| Current Rating (A) | 5 |
|
| Contact Plating Thickness | 3 µin |
|
| Color Insulator | Black |
|
| IP Rating | No IP Rating |
|
| Series | UJ32 |
|
| Dimensions LxWxH (mm) | 9.87 x 8.95 x 3.16 |
|
