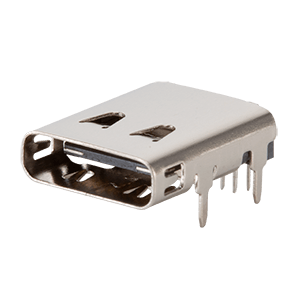

UJ32-21-C-H-G30-HMT-RT-P24-TR
Type C, USB 3.2 Gen 2x1, 10 Gbps, 20 Vdc, 3 A, Horizontal, Hybrid Mount, Long Surface Pins, Hybrid Contacts, Gold Plated 30 µin, 24 Pins, USB Receptacle
Specifications
| Type | Description | |
|---|---|---|
| Connector Type | Receptacle |
|
| Mounting Style | Hybrid Mount |
|
| Contact Pin Type | Hybrid Mount |
|
| USB Type | Type C |
|
| Orientation | Horizontal |
|
| USB Standard | USB 3.2 Gen 2x1 |
|
| Data Transfer Speed | 10 Gbps |
|
| Voltage Rating | 20 |
|
| Input Type | Vdc |
|
| Current Rating (A) | 3 |
|
| Contact Plating Thickness | 30 µin |
|
| Color Insulator | Black |
|
| Dimensions LxWxH (mm) | 11.83 x 8.74 x 2.96 |
|
| IP Rating | No IP Rating |
|
