CPG-86-TH-B
100 gf Mid Compression Operating Force, 12 Vdc, 10 A, Spring Loaded, Gold Plated, Through Hole, Pogo Pin

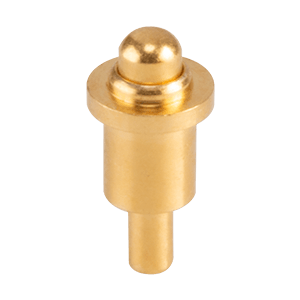

The CPG-86-TH-B is a high current pogo pin carrying a 10 A rated current and 12 Vdc rated voltage. This spring loaded pogo pin features gold plating, a mating cycle rating of 10,000 cycles, and a mid compression operating force of 100 gf.
Specifications
| Type | Description | |
|---|---|---|
| Contact Type | Sleeve and Plunger |
|
| Mounting Style | Through Hole |
|
| Number of Pins | 1 |
|
| Recommended Working Height (mm) | 3.6 |
|
| Plunger Width (mm) | 1.5 |
|
| Overall Height (mm) | 4.3 |
|
| Mid Stroke (mm) | 0.7 |
|
| Barrel Contact Finish Thickness (µm) | 0.125 |
|
| Barrel Contact Finish Thickness (µin) | 4.92 |
|
| Plunger Contact Finish Thickness (µm) | 0.125 |
|
| Plunger Contact Finish Thickness (µin) | 4.92 |
|
| Barrel Diameter (mm) | 2 |
|
| Voltage Rating (Vdc) | 12 |
|
| Current Rating (A) | 12 |
|
| Mid Compression Operating Force (gf) | 100 |
|
| Mating Cycles | 10000 |
|
| Spring | Stainless steel (SUS 304) |
|
| Pad Shape | Round |
|
