CPM1209-08A-01-FST-P7-67

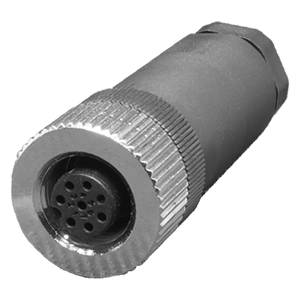

8 Pins, Field Assembly, Screw Terminal, M12 x 1.0, PG7, A-Coding, Unshielded, PA66 Body, IP67, M12 Female Circular Connector Assembly Plug
Specifications
| Type | Description | |
|---|---|---|
| Connector Size | M12 |
|
| Connector Type | Plug |
|
| Connector Style | Female |
|
| Coding | A |
|
| Number of Positions | 8 |
|
| Mounting Style | Free Hanging |
|
| Termination | Screw Terminal |
|
| Voltage Rating (Vac) | 30 |
|
| Current Rating (A) | 2 |
|
| Shielding | No |
|
| Mounting Thread Size | M12 x 1.0 |
|
| Cable Outlet Size | PG7 |
|
| Color | Black |
|
| Contact Finish | Gold Plated |
|
| Shell Finish | PA66 |
|
| Shell Size (mm) | 12 |
|
| IP Rating | IP67 |
|
| Series | CPM1209 |
|
