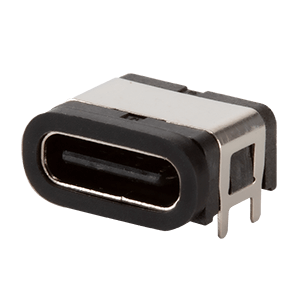

UJC-H-G-SMT-P6-TR-66
Type C, Power Only, 20 Vdc, 3 A, Horizontal, Surface Mount w/ Anchor Pins, SMT Contacts, Gold Flash, 6 Pins, IP66, USB Receptacle
Specifications
| Type | Description | |
|---|---|---|
| Connector Type | Receptacle |
|
| Mounting Style | Surface Mount, Anchor Pins |
|
| Contact Pin Type | Surface Mount |
|
| USB Type | Type C |
|
| Orientation | Horizontal |
|
| USB Standard | N/A - Power Only |
|
| Data Transfer Speed | N/A - Power Only |
|
| Voltage Rating | 20 |
|
| Input Type | Vdc |
|
| Current Rating (A) | 3 |
|
| Contact Plating Thickness | Gold Flash |
|
| Color Insulator | Black |
|
| Dimensions LxWxH (mm) | 7.85 x 10 x 4.66 |
|
| IP Rating | IP66 |
|
Technical Docs
DatasheetOther Resources
