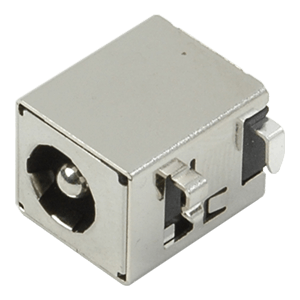

PJ-069B-SMT-TR
2.5 x 5.9 mm, 5.0 A, Horizontal, Mid Mount (SMT), Shielded, Dc Power Jack Connector
Specifications
| Type | Description | |
|---|---|---|
| Connector Type | Jack |
|
| Inner Diameter (mm) | 2.5 |
|
| Outer Diameter (mm) | 5.9 |
|
| Mounting Style | Mid Mount SMT |
|
| Orientation | Horizontal |
|
| Voltage Rating (Vdc) | 24 |
|
| Current Rating (A) | 5 |
|
| Number of Conductors | 2 |
|
| Internal Switch(es) | 1 |
|
| Shielding | Yes |
|
| Insertion Depth/Length (mm) | 8.2 |
|
| Dimensions LxWxH (mm) | 11.8 x 10 x 9.1 |
|
