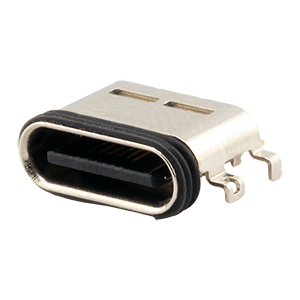

UJ20-C-H-G-MSMT-17B-P16-TR-X5
Type C, USB 2.0, 480 Mbps, 20 Vdc, 3 A, Horizontal, Mid Surface Mount, Gold Flash, IPX5, USB Receptacle
Specifications
| Type | Description | |
|---|---|---|
| Connector Type | Receptacle |
|
| Mounting Style | Mid Surface Mount |
|
| USB Type | Type C |
|
| Orientation | Horizontal |
|
| USB Standard | USB 2.0 |
|
| Data Transfer Speed | 480 Mbps |
|
| Voltage Rating | 20 |
|
| Input Type | Vdc |
|
| Current Rating (A) | 3 |
|
| Contact Plating Thickness | Gold Flash |
|
| Color Insulator | Black |
|
| IP Rating | IPX5 |
|
| Dimensions LxWxH (mm) | 7.05 x 9.57 x 3.8 |
|
