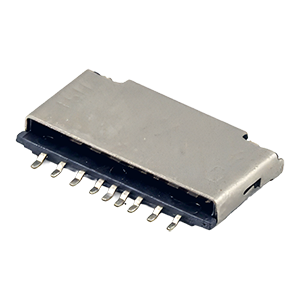

MSD-15-B
Micro SD Card Connector, 8 Contacts, Push In, Pull Out, Surface Mount, 1.55 mm Height Above Board, Gold Flash
Specifications
| Type | Description | |
|---|---|---|
| Connector Type | Connector |
|
| Compatible Card | Micro SD Card |
|
| Mounting Style | Surface Mount |
|
| Removal Method | Push In / Pull Out |
|
| Number of Contacts | 8 |
|
| Height Above Board (mm) | 1.55 |
|
| Card Detect Switch | Yes (Normally Open) |
|
| Contact Finish | Gold Plated |
|
| Contact Finish Thickness | Gold Flash |
|
| Length (mm) | 6.05 |
|
| Width (mm) | 11 |
|
