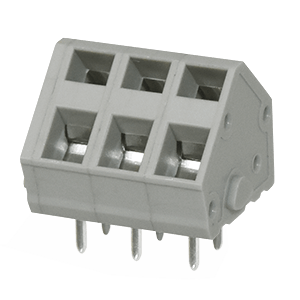

TBL007A-500 Series
2~24 Poles, Screwless, 45°, 5.00 Pitch, 26~14 (AWG), Terminal Block Connector
Features
| Interlocking |
| UL safety approvals |
Options
| 2~24 pole counts |
| Multiple color options |
Specifications
| Type | Description | |
|---|---|---|
| Orientation | 45° |
|
| Pitch (mm) | 5 |
|
| IEC Current Rating (A) | 24 |
|
| UL Current Rating (A) | 15 |
|
| IEC Voltage Rating (Vdc) | 320 |
|
| UL Voltage Rating (Vdc) | 300 |
|
| Operating Temp Range (°C) | -40 ~ 105 |
|
| Wire Gauge (AWG) | 26~14 |
|
| Dimensions WxH (mm) | 14.1 x 12.8 |
|
| Dimensions WxH (in) | 0.56 x 0.5 |
|
| Series | TBL007A-500 |
|
