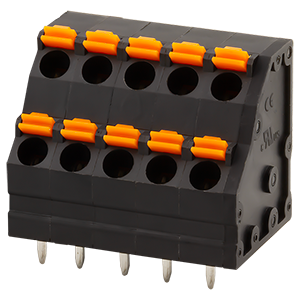

TB0015-500-2-05BK
5 Poles, Screwless, 45°, 5.0 mm Pitch, 30~16 (AWG), Black, Double Deck, Terminal Block Connector
Specifications
| Type | Description | |
|---|---|---|
| Connector Type | Receptacle |
|
| Number of Positions | 5 |
|
| Orientation | 45° |
|
| IEC Current Rating (A) | 17.5 |
|
| IEC Voltage Rating (Vdc) | 320 |
|
| UL Current Rating (A) | 10 |
|
| UL Voltage Rating (Vdc) | 300 |
|
| Screw Type | Screwless |
|
| Wire Gauge (AWG) | 30~16 |
|
| Pitch (mm) | 5 |
|
| Dimensions WxH (mm) | 16.9 x 20.65 |
|
| Operating Temp Range (°C) | -40 ~ 105 |
|
| Series | TB0015-500-2 |
|
