CDM809-05B-FW-F010-050-67

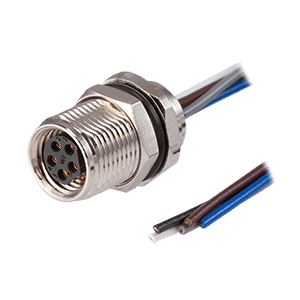

5 Pins, Panel Mount, Wire Front Fastened M10 x 0.75, B-Coding, Screw Copper Alloy, IP67, M8 Female Circular Connector Jack

Datasheet

Specifications

Type Description
Select
Connector Type Jack
Connector Size M8
Connector Style Female
Mounting Style Panel Mount
Termination Wire Leads
Fastening Type Threaded Front
Coding B
Number of Positions 5
Voltage Rating (Vac) 30
Current Rating (A) 3
Mounting Thread Size M10 x 0.75
Pin Size (mm) 1
Shell Size (mm) 8
Contact Finish Gold Plated
Shell Finish Brass with Nickel Plating
Shielding No
Color Silver
IP Rating IP67
Series CDM809
