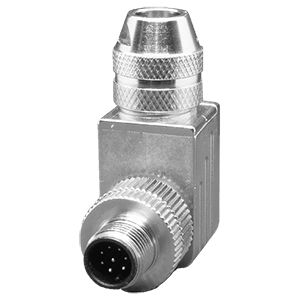

CPM1204-04A-02-MRA-M9-67
4 Pins, Field Assembly, Screw Terminal, Right Angle, M12 x 1.0, PG9, A-Coding, Shielded, Metal Brass Nickel Body, IP67, M12 Male Circular Connector Assembly Plug
Specifications
| Type | Description | |
|---|---|---|
| Connector Size | M12 |
|
| Connector Type | Plug |
|
| Connector Style | Male |
|
| Mounting Style | Free Hanging |
|
| Termination | Screw Terminal |
|
| Voltage Rating (Vac) | 250 |
|
| Current Rating (A) | 4 |
|
| Shielding | Yes |
|
| Coding | A |
|
| Number of Positions | 4 |
|
| Mounting Thread Size | M12 x 1.0 |
|
| Cable Outlet Size | PG9 |
|
| Contact Finish | Gold Plated |
|
| Shell Finish | Brass Nickel Plated |
|
| Shell Size (mm) | 12 |
|
| IP Rating | IP67 |
|
| Series | CPM1204 |
|
