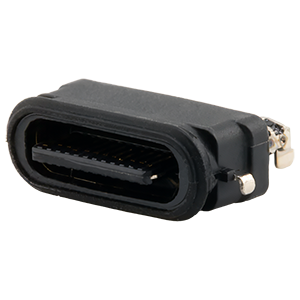

UJ32-C-H-G-MSMT-20B-P24-TR-68
Type C, USB 3.2 Gen 2x1, 5 Gbps, 20 Vdc, 5 A, Horizontal, Mid Surface Mount, Gold Plated 15 µin, IPX8, USB Receptacle
Specifications
| Type | Description | |
|---|---|---|
| Connector Type | Receptacle |
|
| Mounting Style | Mid Surface Mount |
|
| USB Type | Type C |
|
| Orientation | Horizontal |
|
| USB Standard | USB 3.2 Gen 1 |
|
| Data Transfer Speed | 5 Gbps |
|
| Voltage Rating | 20 |
|
| Input Type | Vdc |
|
| Current Rating (A) | 5 |
|
| Contact Plating Thickness | 15 µin |
|
| Color Insulator | Black |
|
| IP Rating | IP68 |
|
| Dimensions LxWxH (mm) | 6.75 x 8.55 x 2.76 |
|
