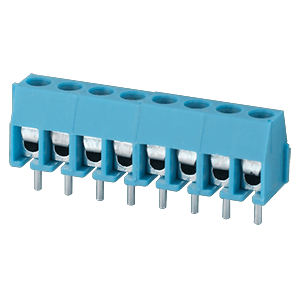

TB0011-350-08BE
10 Poles, Screw Type, Horizontal, 3.50 Pitch, 24~18 (AWG), Terminal Block Connector
Specifications
| Type | Description | |
|---|---|---|
| Connector Type | Receptacle |
|
| Number of Positions | 8 |
|
| Orientation | Horizontal |
|
| IEC Current Rating (A) | 10 |
|
| IEC Voltage Rating (Vdc) | 250 |
|
| UL Current Rating (A) | 7 |
|
| UL Voltage Rating (Vdc) | 300 |
|
| Screw Type | Slot |
|
| Wire Gauge (AWG) | 24~18 |
|
| Pitch (mm) | 3.5 |
|
| Dimensions WxH (mm) | 6.9 x 8.5 |
|
| Series | TB0011-350 |
|
