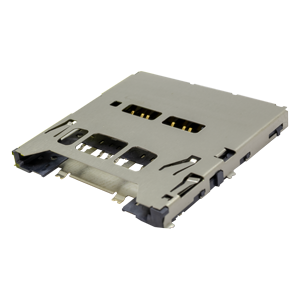

SD7-5-A
SD7-5-A
SD7-5-A Alternate View

SD7-5-A

SD Card Connector, 18 Contacts, Write Protect, Push In, Auto Eject Out, Surface Mount, 2.9 mm Height Above Board, 1 µin Gold

Datasheet

Specifications

Type Description
Select
Connector Type Connector and Ejector
Compatible Card SD Card
Mounting Style Surface Mount
Removal Method Push In, Auto Eject Out
Number of Contacts 18
Height Above Board (mm) 2.9
Card Detect Switch Yes
Contact Finish Gold Plated
Contact Finish Thickness 1 µin
