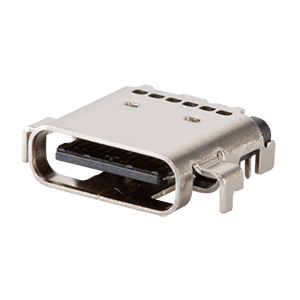

UJ32-21-C-H-G-MSMT-FT-P24-TR
Type C, USB 3.2 Gen 2x1, 10 Gbps, 20 Vdc, 5 A, Mid Mount SMT, Gold Flash, USB Receptacle
Specifications
| Type | Description | |
|---|---|---|
| Connector Type | Receptacle |
|
| Mounting Style | Mid Mount SMT |
|
| USB Type | Type C |
|
| Orientation | Horizontal |
|
| USB Standard | USB 3.2 Gen 2x1 |
|
| Data Transfer Speed | 10 Gbps |
|
| Voltage Rating | 20 |
|
| Input Type | Vdc |
|
| Current Rating (A) | 5 |
|
| Contact Plating Thickness | Gold Flash |
|
| Color Insulator | Black |
|
| Dimensions LxWxH (mm) | 7.9 x 11.9 x 2.16 |
|
| IP Rating | No IP Rating |
|
| Series | UJ32 |
|
