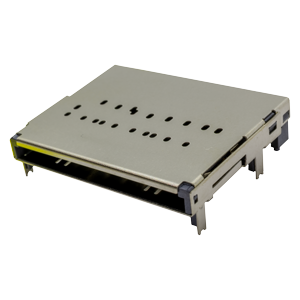

SD7-4-B
SD7-4-B
SD7-4-B Alternate View

SD7-4-B

SD Card Connector, 21 Contacts, Write Protect, Push In, Pull Out, Surface Mount, 5.87 mm Height Above Board, 1 µin Gold

Datasheet

Specifications

Type Description
Select
Connector Type Connector
Compatible Card SD Card
Mounting Style Surface Mount
Removal Method Push In, Pull Out
Number of Contacts 21
Height Above Board (mm) 5.87
Card Detect Switch Yes
Contact Finish Gold Plated
Contact Finish Thickness 1 µin
