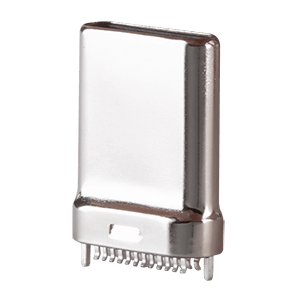

UP32-1-C-H-G-BMT-P24
Type C, USB 3.2 Gen 1, 5 Gbps, 5 Vdc, 5 A, Horizontal, Board Edge Mount, SMT Contacts, Gold Flash, 24 Pins, USB Plug
Specifications
| Type | Description | |
|---|---|---|
| Connector Type | Plug |
|
| Mounting Style | Board Edge |
|
| Contact Pin Type | Surface Mount |
|
| USB Type | Type C |
|
| Orientation | Horizontal |
|
| USB Standard | USB 3.2 Gen 1 |
|
| Data Transfer Speed | 5 Gbps |
|
| Voltage Rating | 5 |
|
| Input Type | Vdc |
|
| Current Rating (A) | 5 |
|
| Contact Plating Thickness | Gold Flash |
|
| Color Insulator | Black |
|
| Dimensions LxWxH (mm) | 10.8 x 8.55 x 1.45 |
|
| IP Rating | No IP Rating |
|
