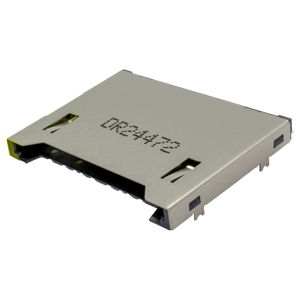

SD7-1-B
SD Card Connector, 21 Contacts, Card Detect Switch, Write Protect, Push In, Pull Out, Surface Mount, 2.95 mm Height Above Board, 1 µin Gold
Specifications
| Type | Description | |
|---|---|---|
| Connector Type | Connector |
|
| Compatible Card | SD Card |
|
| Mounting Style | Surface Mount |
|
| Removal Method | Push In / Pull Out |
|
| Number of Contacts | 21 |
|
| Height Above Board (mm) | 2.95 |
|
| Card Detect Switch | Yes (Normally Open) |
|
| Contact Finish | Gold Plated |
|
| Contact Finish Thickness | 1 µin |
|
| Length (mm) | 21.2 |
|
| Width (mm) | 26.6 |
|
