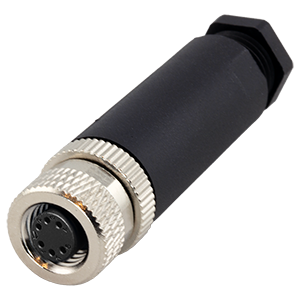

CPM810-06A-FST-M5-67
6 Pins, Field Assembly, Solder Terminal, Straight, M8 x 1.0, M5, A-Coding, Unshielded, PA66 Body, IP67, M8 Female Circular Connector Assembly Plug
Specifications
| Type | Description | |
|---|---|---|
| Connector Size | M8 |
|
| Connector Type | Plug |
|
| Connector Style | Female |
|
| Coding | A |
|
| Number of Positions | 6 |
|
| Mounting Style | Free Hanging |
|
| Termination | Solder Terminal |
|
| Voltage Rating (Vac) | 30 |
|
| Current Rating (A) | 1.5 |
|
| Pin Size (mm) | 1 |
|
| Mounting Thread Size | M8 x 1.0 |
|
| Cable Outlet Size | M5 |
|
| Shell Finish | PA66 |
|
| Color | Black |
|
| Contact Finish | Gold Plated |
|
| Shielding | No |
|
| Shell Size (mm) | 8 |
|
| Operating Temp Range (°C) | -40 ~ 80 |
|
| IP Rating | IP67 |
|
| Series | CPM810 |
|
