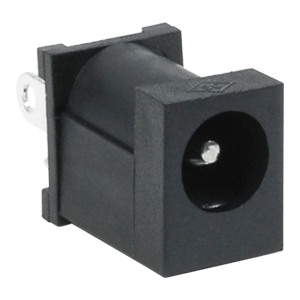

PJ-060B

PJ-060B

2.5 x 6.3 mm, 2.0 A, Vertical, Though Hole, Dc Power Jack Connector

Datasheet

Specifications

Type Description
Select
Connector Type Jack
Inner Diameter (mm) 2.5
Outer Diameter (mm) 6.3
Insertion Depth/Length (mm) 9.7
Mounting Style Through Hole
Orientation Vertical
Voltage Rating (Vdc) 24
Current Rating (A) 5
Number of Conductors 2
Internal Switch(es) 1
Shielding No
Dimensions LxWxH (mm) 10.7 x 8.7 x 14
