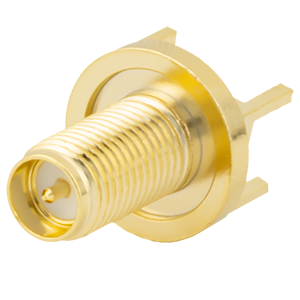

RF-SMA-RP-TH-ST-F-6-002-67
0~6 GHz, 50 O Impedence, VSWR 1.5 max, Straight, Through Hole, PCB Pins, Brass, Reverse Polarity, RF SMA Receptacle Connector
Specifications
| Type | Description | |
|---|---|---|
| Connector Type | Receptacle |
|
| RF Connector Type | SMA |
|
| Frequency Range (GHz) | 0~6 |
|
| Nominal Impedence (Ω) | 50 |
|
| Voltage Standing Wave Ratio (max) | 1.5 |
|
| Insulation Resistance (Ω min) | 5000 |
|
| Working Voltage (V rms) | 335 |
|
| Dielectric Withstanding Voltage (V rms) | 1000 |
|
| Mounting Style | Through Hole |
|
| Contact Termination | PCB Pin |
|
| Polarity | Reverse Polarity |
|
| Orientation | Vertical |
|
| Body Material | Brass |
|
| Industry Standard(s) | MIL-C-39012, CECC 22110/111 |
|
| Length (mm) | 9.5 |
|
| Width (mm) | 7.3 |
|
| Height Above Board (mm) | 12.85 |
|
| IP Rating | IP67 |
|
